Question #244

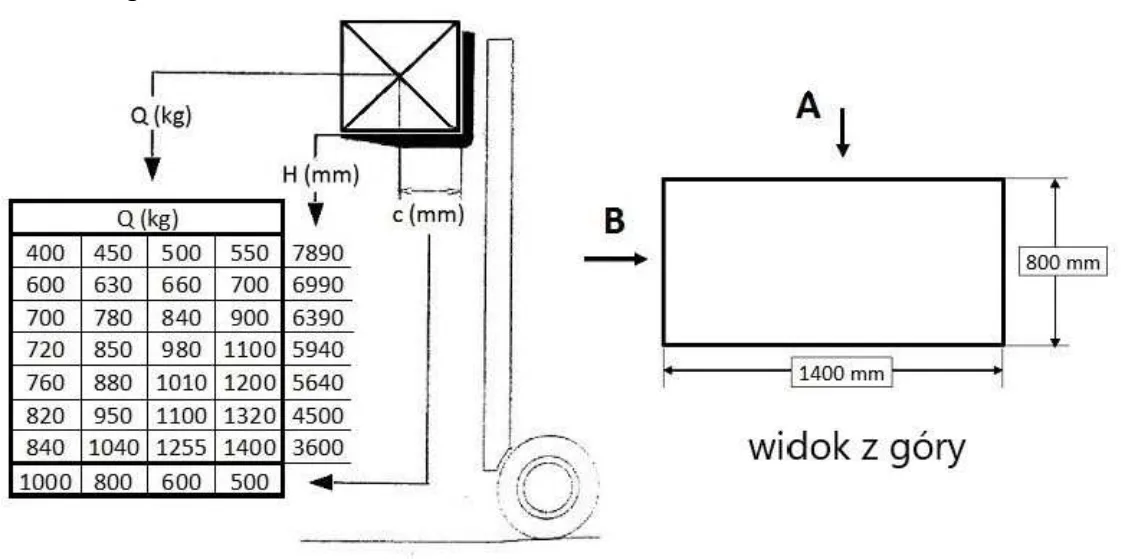

Using the load capacity chart and drawing shown, determine the maximum mass of a load picked up from side B:
W oparciu o przedstawiony diagram udźwigu oraz rysunek określ maksymalną masę ładunku, pobranego od strony B:
Open full-size illustrationa
1400 kg
1400 kg
b
1255 kg
1255 kg
c
1040 kg
1040 kg
Correct answer
d
840 kg
840 kg
Why?
When picking up from side B, the dimension along the forks is 1400 mm, so the load centre distance (odległość środka ciężkości) is c = 700 mm. Since 700 mm is not listed, conservatively use the c = 800 mm column, giving a maximum capacity of 1040 kg at H = 3600 mm. Do not select 1255 kg from the c = 600 mm column because the actual load centre is farther away.
