Question #285

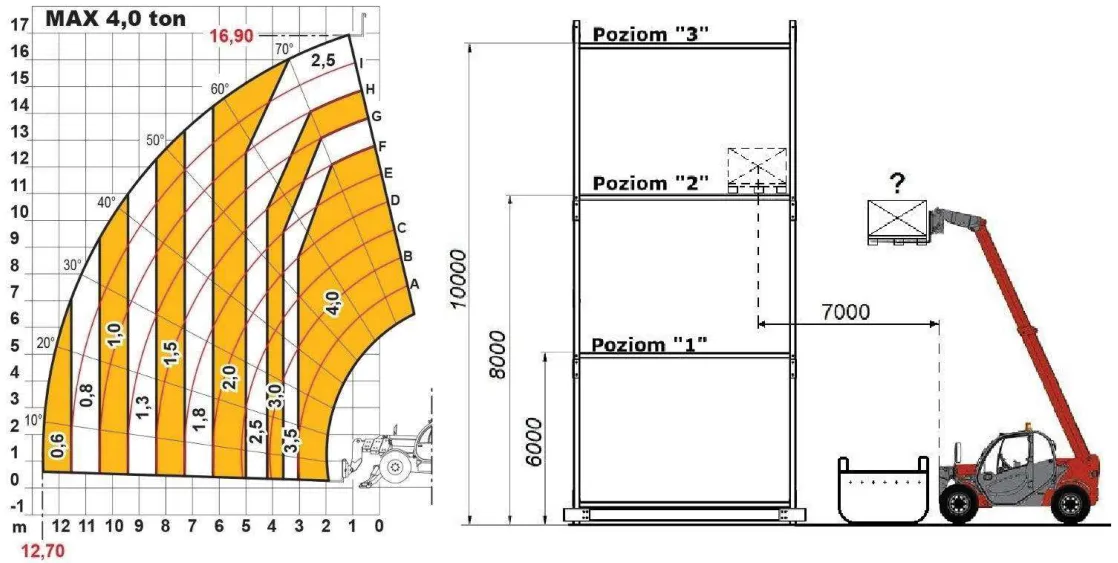

What can the mass of the load being lifted be if, according to the load chart and the situation shown, the operator must place it on level “2”?
Ile może wynosić masa podnoszonego ładunku w przypadku, gdy zgodnie z podanym diagramem udźwigu w sytuacji jak na rysunku operator ma za zadanie odłożyć ładunek na poziomie „2” ?
Open full-size illustrationa
1500 kg
1500 kg
b
1800 kg
1800 kg
Correct answer
c
2000 kg
2000 kg
d
2200 kg
2200 kg
Why?
Level 2 is at a height of 8 m, and the required forward reach (wysięg) is 7 m. The intersection of these values lies in the 1.8 t area, meaning 1800 kg. The intended answer is the capacity limit (udźwig): 1500 kg is also within the limit but does not identify it, while 2000 and 2200 kg exceed it.
