Question #546

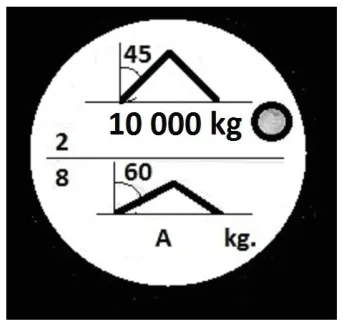

Based on the diagram, identify value A for the wire rope sling:
W oparciu o przedstawiony rysunek wskaż wartość A dla zawiesia linowego:
Open full-size illustrationa
6.0 t
6,0 t
b
5.0 t
5,0 t
c
7.0 t
7.0 t
Correct answer
d
3.5 t
3,5 t
Why?
On the wire rope sling (zawiesie linowe) plate, the 45° and 60° angles are measured between a leg and the vertical. At the larger angle, capacity falls to approximately 70% of 10 000 kg, so 7.0 t is the matching option. Choosing 5.0 t would incorrectly halve that capacity.
