Question #834

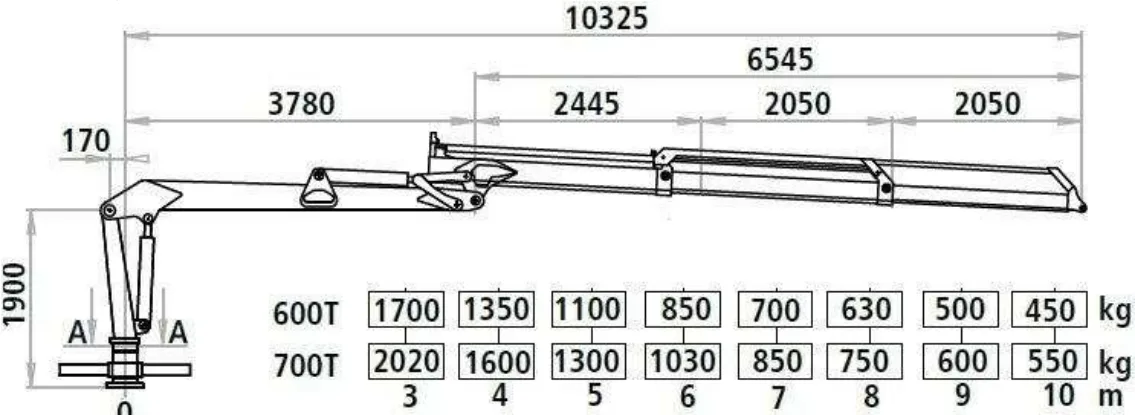

Based on the diagram, identify the correct operating parameters of the crane:
W oparciu o przedstawiony diagram wskaż poprawne parametry pracy zurawia:
Open full-size illustrationa
the diagram covers two types of crane
diagram dotyczy dwóch rodzajów żurawi
b
the maximum outreach is 10 m
maksymalny wysięg wynosi 10 m
c
the maximum lifting capacity of the 700T crane is 2.02 t
maksymalny udźwig żurawia żurawia 700T to 2,02 t
d
all answers are correct
wszystkie odpowiedzi są prawidłowe
Correct answer
Why?
The table covers models 600T and 700T, ends at an outreach (wysięg) of 10 m, and lists the highest lifting capacity (udźwig) for 700T as 2020 kg, or 2.02 t. The intended answer is therefore “all answers are correct”; selecting only a or c would be incomplete. There is a simplification here: the dimension above the drawing is 10325 mm, so 10 m refers to the last outreach listed in the table.
