Question #812

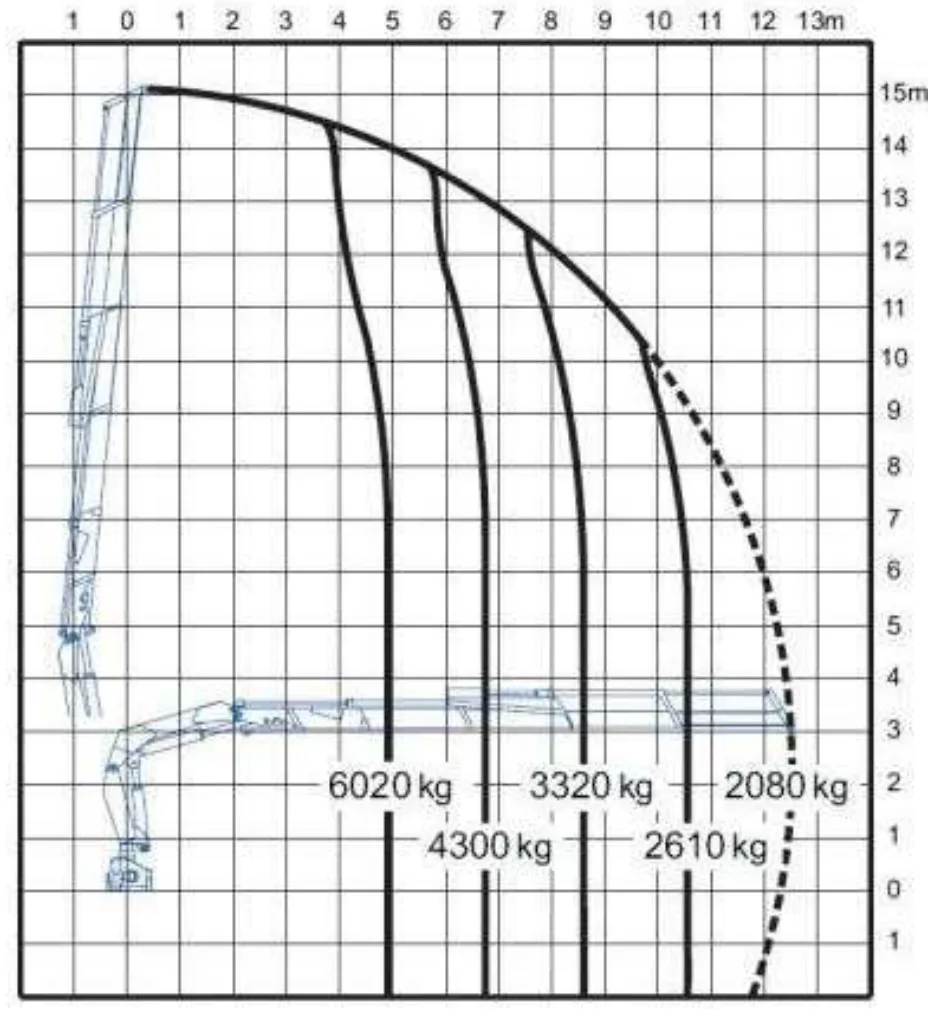

Based on the diagram, identify the maximum load mass that can be placed at a distance of 4 m:
W oparciu o przedstawiony diagram wskaż maksymalną masę ładunku, jaką można podać na odległość 4 m:
Open full-size illustrationa
4100 kg
4100 kg
b
6200 kg
6200 kg
Correct answer
c
3260 kg
3260 kg
d
5200 kg
5200 kg
Why?
An outreach (wysięg) of 4 m lies within the first curve, labelled 6020 kg on the diagram, which reaches about 5 m. Among the options this value appears as 6200 kg (digits transposed), so the key gives answer b. The values 5200 kg, 4100 kg and 3260 kg do not appear on this diagram. In practice, always use the lifting capacity (udźwig) shown on the diagram, i.e. 6020 kg.
